Making it Simple

Mobberly Baptist Church strives to serve the people of its community in a meaningful and impactful way. After the opening of the bridge, the church decided it needed a simpler system to control its technology. Together with QSC and Cisco, we redefined usability in the venue; enabling users of all walks of life to simply and easily control the building and its technology.

Overview

Scope

  • Replace touch panels

  • Reconfigure networking

  • Remove all analog control and replace with network control

  • Super Simple and Intuitive Interface

Proposal

  • Replace existing controller with QSC’s Q-Sys Core 110f

  • Replace all in-room touch panels with QSC;s Q-Sys 5” touch panels

  • Replace all networking with Cisco Switches

  • Replaces halogen projects with Laser Projectors

  • Leave existing wall mounted displays

  • Re-use a majority of cabling

  • Replace all media playing devices with updated equipment

  • Simplify combining room operation in software

Equipment Used

  • 1x QSC Q-Sys Core 110f

  • 2x QSC Q-sys 8” touch panels

  • 18x QSC Q-Sys 5” touch panels

  • 20x Cisco Small Business 8 port GbE switches

  • 1x Cisco Small Business 24 port GbE Switch

  • 1x Cisco Small Business 48 Port GbE Switch

  • 20x Denon MK II Network BluRay players

  • 18x Sharp Network Controlled TV’s

  • 2x Sony 6k Laser Projectors

  • 20x custom made connection wall plates

  • 5x Extron HDMI Switches 5 port

  • 2x Extron HDMI Switches 8 port

  • 4x HDMI to Ethernet converters

  • 20x AirServers

  • 7x 1u Battery Backups

  • 1x 2u Battery Backup

User Interface

Objectives

  • Stupid Easy Interaction

  • Complete room control

Single Room Controls


Multi Room Controls


Single Room Backend

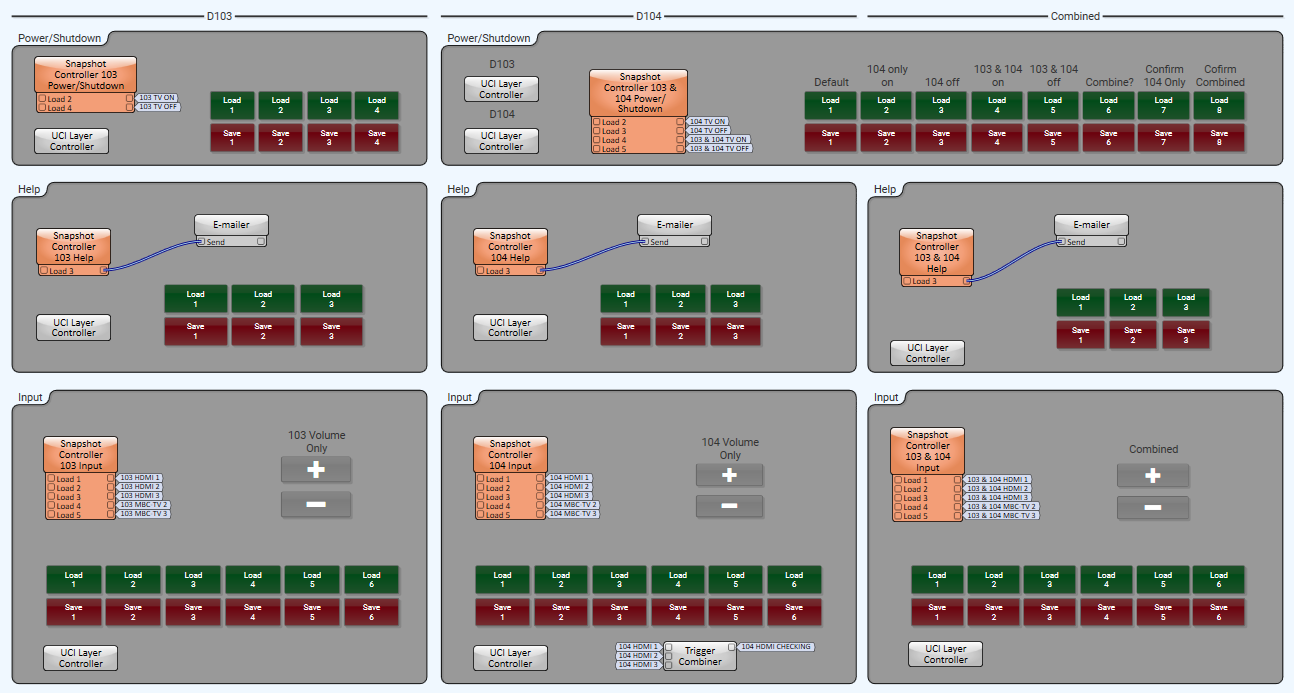

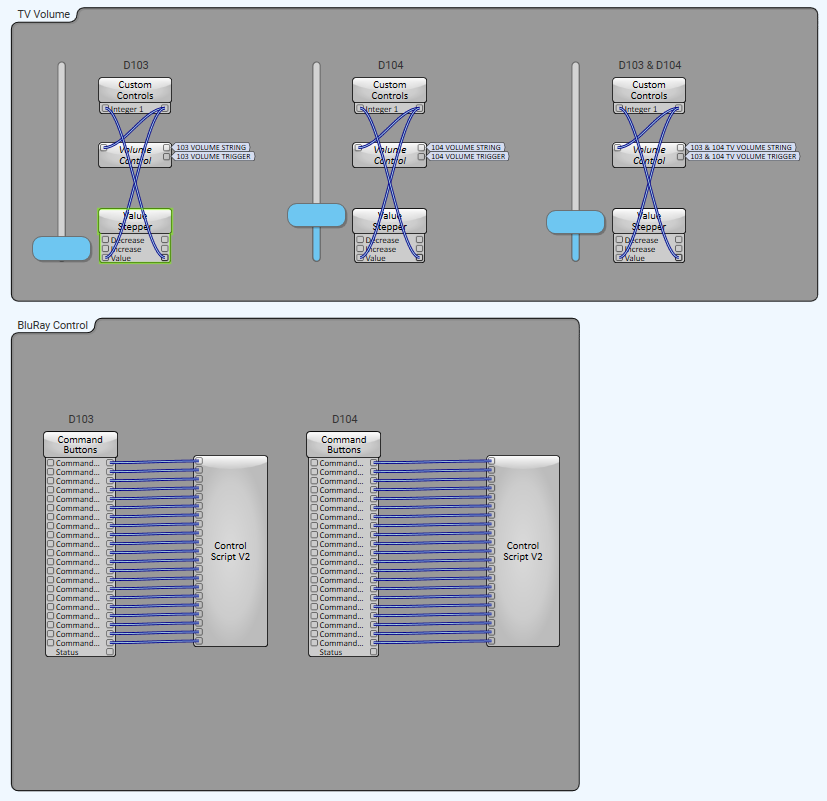

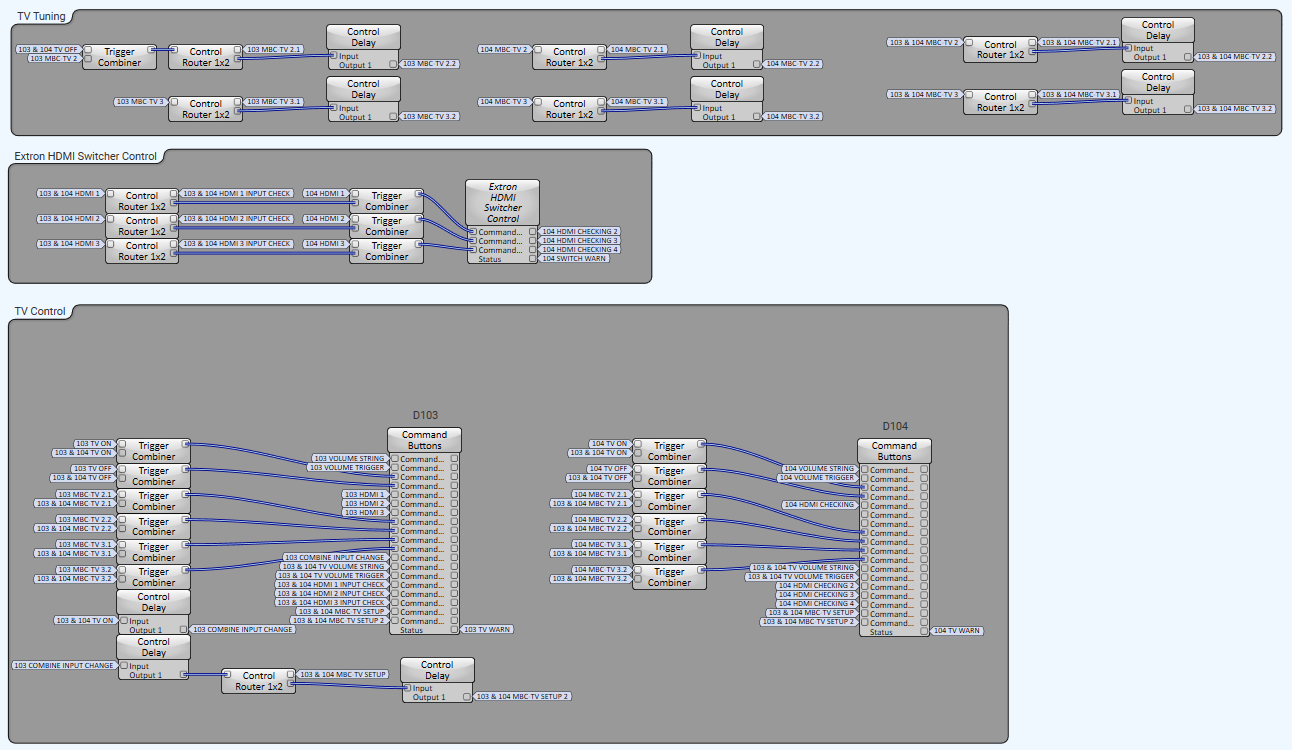

Combing Room Backend

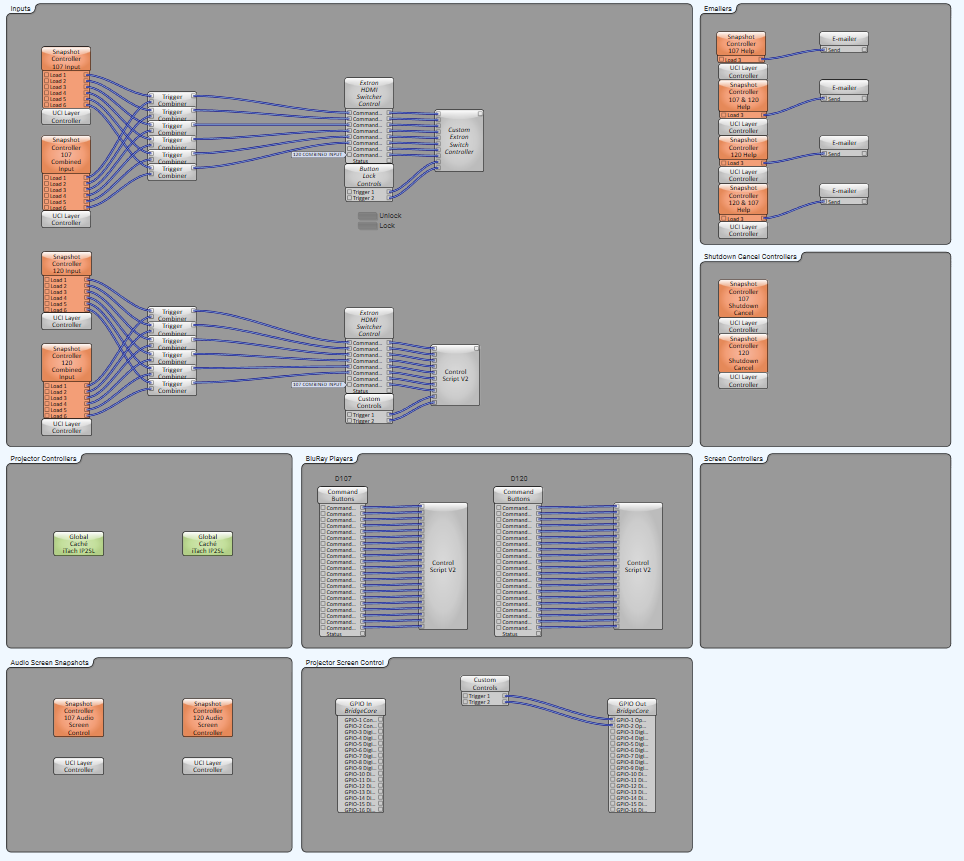

Large Room Backend


Demo

Single Room Demo
